GHC School

Development

Grupo Hospitalar Conceição

Program

Institutional

Location

Porto Alegre, RS, BR

Status

Idea

Year

2014 - 2019

The headquarters building of GHC School - Center for Technological Education and Health Research of Grupo Hospitalar Conceição - brings together all the school’s activities in a single structure, improving the infrastructure for installing new and modern equipment and enabling the expansion of current activities.

This provides relevant contributions to health advancements in the capital of Rio Grande do Sul, as Grupo Hospitalar Conceição’s services are 100% focused on the Sistema Único de Saúde (SUS). The site has a sharp-angled corner, so from the beginning of the project, efforts were made to occupy it without creating barriers.

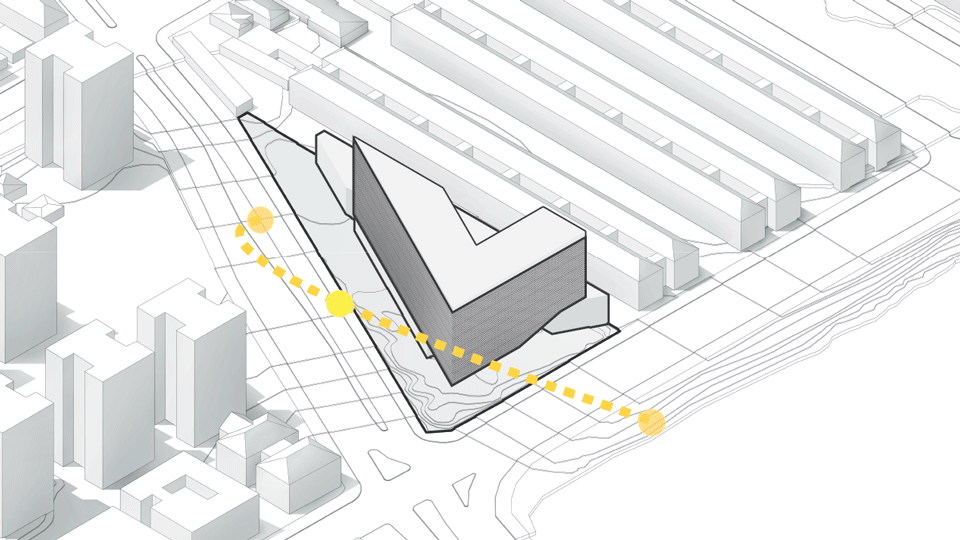

Approaching the corner from either Av. Grécia or Av. Francisco Trein provides a wide open visual field, enhancing safety and making the route much more pleasant. Additionally, for those in a hurry, it’s possible to take a shortcut through the school’s access square.

OSPA Escola GHC DIAG (10).gif
OSPA Escola GHC DIAG (1).gif
OSPA Escola GHC DIAG (2).gif
OSPA Escola GHC DIAG (3).gif
OSPA Escola GHC DIAG (4).gif
OSPA Escola GHC DIAG (5).gif
OSPA Escola GHC DIAG (6).gif
OSPA Escola GHC DIAG (7).gif
OSPA Escola GHC DIAG (8).gif
OSPA Escola GHC DIAG (9).gif

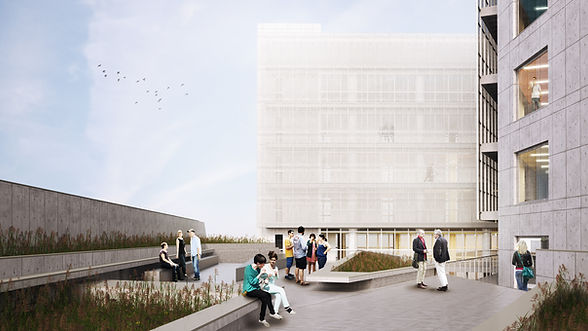

This covered access square, slightly elevated in relation to the ground level at the corner, separates heavy traffic from pedestrian access. It creates not only an access area but also a public square that can be used by the entire population. The ground-floor cafeteria also utilizes this covered square, making it a place for students and teachers to gather.

OSPA 04032GHC 03 Press PLA 1 PAV 980px.png
OSPA 04032GHC 03 Press PLA 2 PAV 980px.png
OSPA 04032GHC 03 Press PLA 3 PAV 980px.png
OSPA 04032GHC 03 Press PLA 4 PAV 980px.png
OSPA 04032GHC 03 Press PLA 5 PAV 980px.png
OSPA 04032GHC 03 Press PLA 6 PAV 980px.png
OSPA 04032GHC 03 Press PLA 7 PAV 980px.png
OSPA 04032GHC 03 Press PLA COB 980px.png
OSPA 04032GHC 03 Press PLA PAV TEC 980px.png

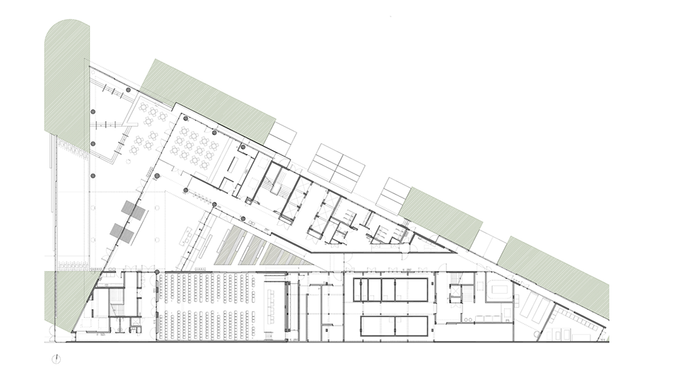

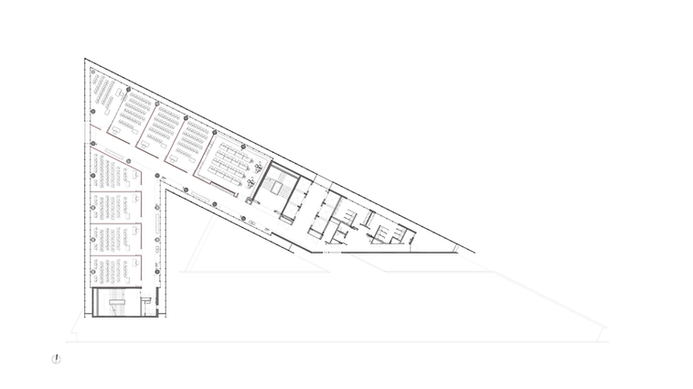

The project includes an auditorium, library, classrooms, laboratories, administrative and support areas, as well as study spaces and a terrace. These spaces are distributed across seven floors, plus one technical floor.

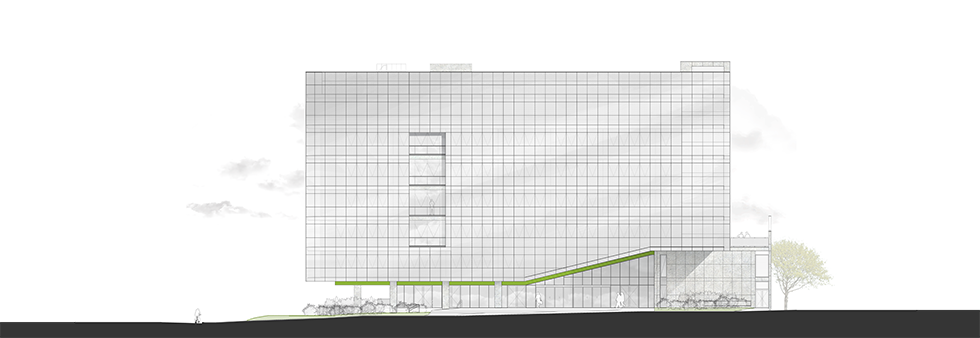

OSPA 04032GHC 03 Press CTR LONG 01 980px.png
OSPA 04032GHC 03 Press CTR TRANS 01 980px.png
OSPA 04032GHC 03 Press ELV NE 980px.png
OSPA 04032GHC 03 Press ELV O 980px.png
OSPA 04032GHC 03 Press ELV S 980px.png

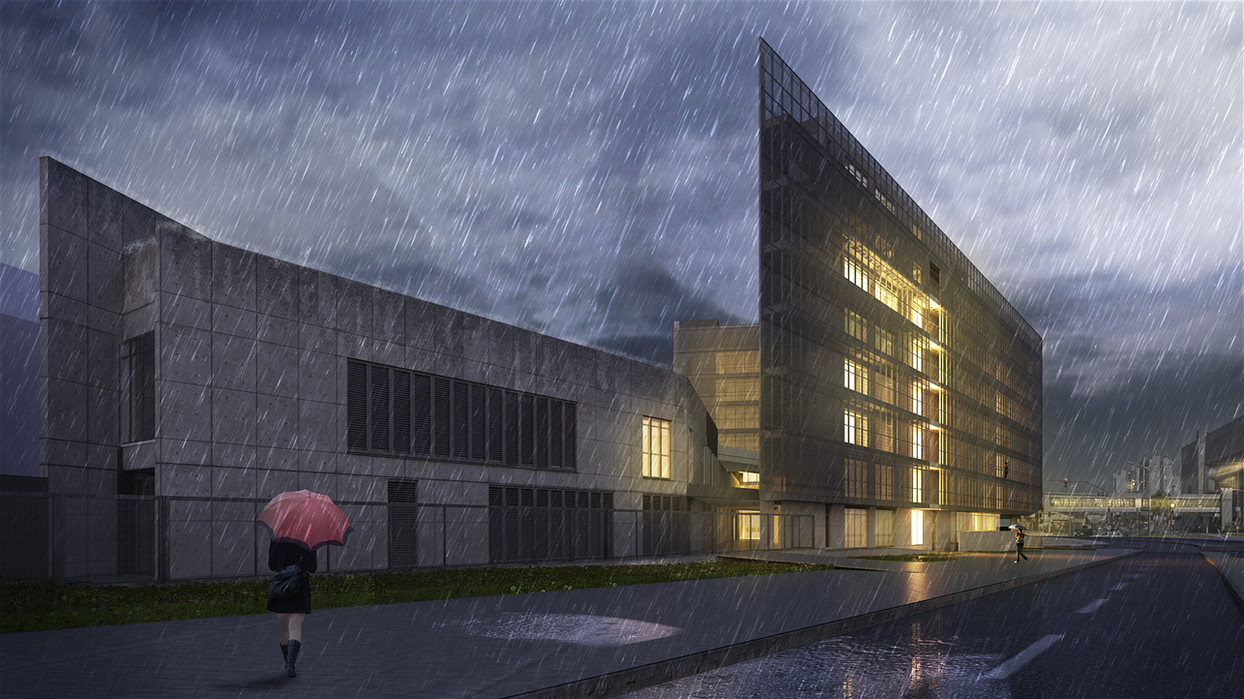

The building incorporates numerous sustainability features, such as solar protection on the facades to reduce energy and air conditioning consumption, natural ventilation and lighting maximized, green roofing, rainwater harvesting, all-LED lighting, and automation and monitoring of all systems. This promises a high level of energy efficiency and advanced resources for controlling building use and maintenance.

04032GHC PE 3D IM02.jpg
04032GHC DIV IM 07 Externa 02.jpg
04032GHC PE 3D IM03.jpg
04032GHC DIV IM 04 Sala de estudos_edited.jpg
04032GHC PE 3D IM05.jpg
04032GHC PE 3D IM06.jpg
04032GHC DIV IM 01 Externa 01_edited.jpg

Info

DEVELOPER | Grupo Hospitalar Conceição

PROGRAM | Institutional
LOCATION | Porto Alegre, RS, BR
STATUS | Idea
YEAR | 2014 - 2019
PROJECT AREA | 11,651.47 sqm
SITE AREA | 3,920.69 sqm

Team

PARTNER IN CHARGE | Carolina Souza Pinto
COORDINATION | Aline Comiran
ARCHITECTURE | Carolina Souza Pinto, Lucas Obino, Cristiano Carneiro, Franco Miotto, Aline Comiran, Ellen Renata Bernardi, Augusto Tumelero, Daniela Yoshimoto, Graziela Venzon, Guilherme Silva, Laura Aurvalle, Manoela Conte, Mateus Sartori, Matheus Bragagnolo, Matheus Lorenzet, Paula Sassi, Rodrigo Rocha
LANDSCAPE | Carolina Souza Pinto, Cristiano Carneiro, Aline Comiran
ENVIRONMENTAL GRAPHIC DESIGN | Ellen Renata Bernardi, Luiza Andreis, Paula Sassi

CGI | Guilherme Silva
STRUCTURE | Guilherme Laini, Miguel Lahude
ELECTRICAL ENGINEERING | Manoel Coelho, Fernando Chiapinotto, Fillipe Figueiró
AUTOMATION AND SECURITY SYSTEMS | Júlio Pischke, Gustavo Torres
PLUMBING ENGINEERING, FIRE PROTECTION AND GAS ENGINEERING | Marcelo Berny, Márcio Trolli
MECHANICAL ENGINEERING | Flávio Teixeira
